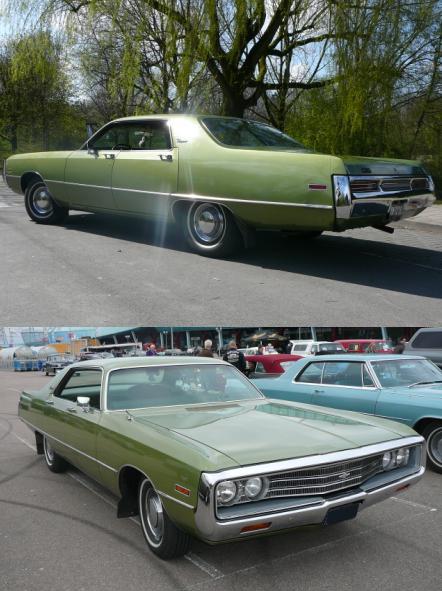

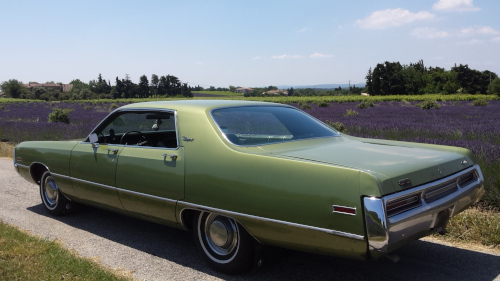

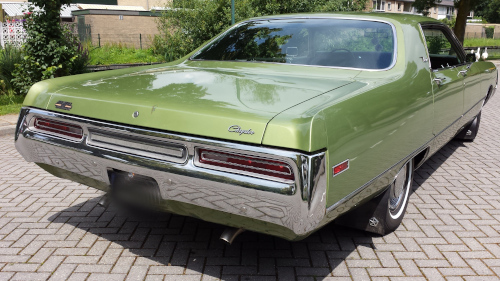

This is my Chrysler Newport
 |
General |
||
| Make | Chrysler | ||
| Year | 1971 | ||
| Model | Newport 4 door Hardtop | ||
| Powertrain Layout | Front Engine / RWD | ||
| Base Price | $ 4265 (1971) | ||
| Units Produced | 10800 | ||
|
Dimensions |
|||
| WheelBase | 3137 mm / 123.5 in | ||
| Length | 5705 mm / 224.6 in | ||
| Height | 1402 mm / 55.2 in | ||
| Width | 2009 mm / 79.1 in | ||
| Dry Weight | 2210 kg / 4872 lbs | ||
| Front / Rear Thread | F 1577 mm / 62.1 in R 1610 mm / 63.4 in |
||
|
Engine |
|||
| Configuration | 383 CI V8 model B | ||
| Valvetrain | 2 valves / cylinder, hydraulic | ||
| Carburetor | Two-barrel Carter BBD 4962S | ||
| Fuel | Gasoline / Liquified Propane Gas | ||
| Displacement | 6276 cc / 383.0 cu in | ||
| Power | 202 kW / 275 bhp @ 4800 rpm | ||
| Torque | 339 Nm / 376 ft lbs @ 3400 rpm | ||
| Bore | 107.9 mm / 4.25 in | ||
| Stroke | 85.8 mm / 3.38 in | ||
| Compression Ratio | 8.5:1 | ||
|
Transmission |
|||
| Type | A-727 TorqueFlite | ||
| Gears | 3-Speed Automatic | ||
| Drivetrain | Cardan with Single Joints | ||
| Rear axle | 8 ¾ | ||
|
Chassis & Body |
|||
| Steering | Rack & Pinion with Power Assist | ||
| Tire Sizes | 225/75 R15" | ||
| Brake Type Front | Vented Disc with Power Assist | ||
| Brake Type Rear | Drum with Power Assist | ||
| Body Material | Steel | ||
